Gold Plated ZIF Test IC Socket Connector 1.778mm Pitch 1A Current Rating

Name: Gold Plated ZIF Test IC Socket Connector 1778mm Pitch 1A Current Rating
Brand: ANYO
Price: 1 USD

Brand Name : ANYO

Model Number : AY1003-1A

Place of Origin : CHINA

MOQ : 2000pcs

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 100000 per day

Delivery Time : 8-10 work days

Packaging Details : Customized carton

Other name : Test Socket

Current rating : 1A

Insulator Resistance : 5000MΩ min. at DC500V

Contact Resistance : 20mΩ max. at DC100mA

Temperature : -55~105℃

Pitch : 1.778mm

Contact Now

Gold plated 1.778mm Pitch Universal ZIF Test IC Socket Connector

Description:

Zero Insertion Force (ZIF) sockets clamp onto a chip, making a good electrical connection, when you push the lever down. When you release the lever, it releases the chip. This allows you to repeatedly insert or remove a chip from the socket without damage to either.

Specification:

Material	Housing: 30% glass filled PBT UL94-0 Contacts: Phosphor bronze Plating: Gold plated 3u over 50u nickel Tin plated 100u over 50u nickel
Current rating	1A
Insulator resistance	5000MΩ min. at DC500V
Contact resistance	20mΩ max. at DC100mA
Temperature	-55~105℃

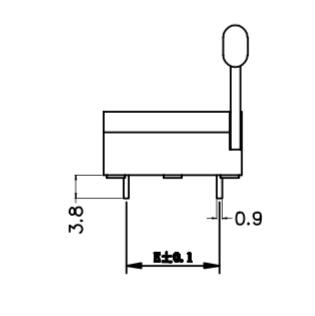

Dimension: (mm)

Position	A	B	C	D	E
28P	40.1	36.1	23.11	17.5	10.16
32P	44.1	40.1	26.67	17.5	10.16
42P W	52.4	48.4	35.56	22.6	15.24
42P N	52.4	48.4	35.56	17.5	10.16
56P	64.8	60.8	48	22.6	15.24
64P	72	68	55.11	27.7	20.32
